Waterco Supatuf Pump (up to 500LPM)

Please contact us for pricing



Request a Quote

Categories: ,

Applications: , ,

Brand:

Waterco Supatuf Pump (up to 500LPM)
Waterco Supatuf Pump (up to 500LPM) - Image 2

Product Information

Key Features

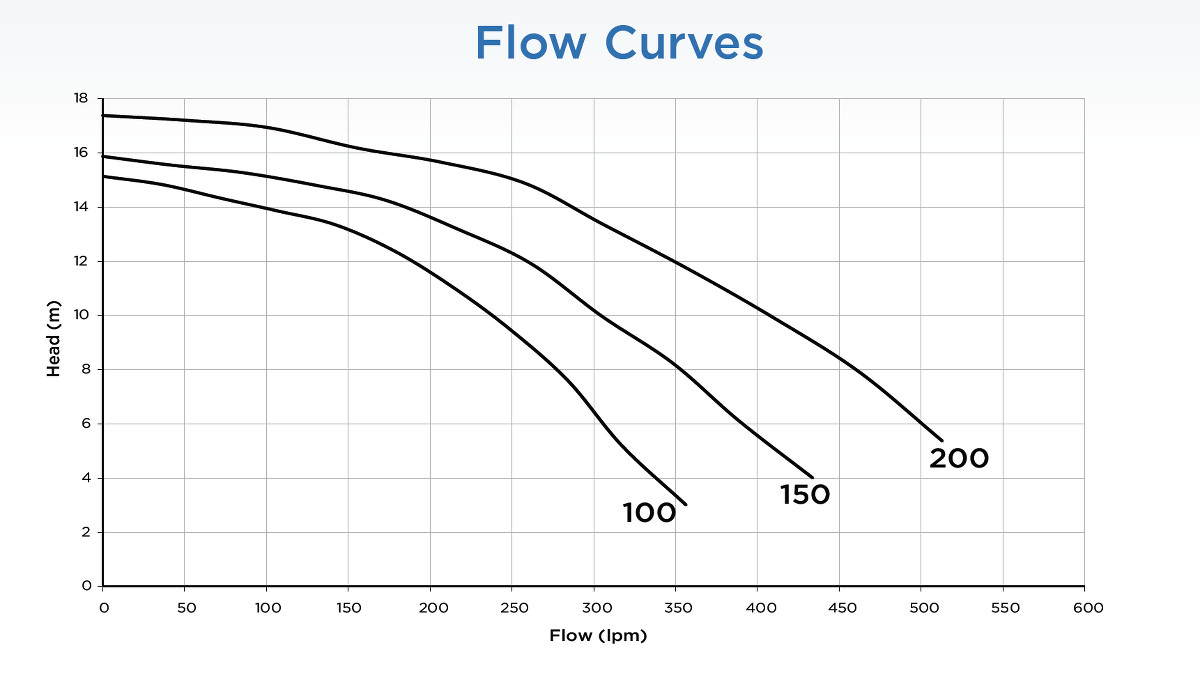

  • Three self-priming single-phase models delivering 325 to 530 LPM at 5 m head
  • Built for high demand, high flow duty — the Supatuf is a true workhorse in a self-priming format
  • 50 mm / 2″ quick connect unions for fast installation and removal
  • 2.1 litre strainer basket ahead of the impeller
  • Mechanical seal protected by a secondary seal
  • Available in 1.0 HP, 1.5 HP and 2.0 HP on standard single-phase supply
  • 3 year warranty (please refer to Waterco’s warranty terms and conditions)
  • To size a pump, work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head

Specifications

ModelSKUFlow at headMotorSupplyConnections
Supatuf 100241100325 LPM (19,500 LPH) at 5 m head1.0 HP (~0.75 kW)Single phase50 mm / 2" quick connect unions
Supatuf 150241150425 LPM (25,500 LPH) at 5 m head1.5 HP (~1.1 kW)Single phase50 mm / 2" quick connect unions
Supatuf 200241200530 LPM (31,800 LPH) at 5 m head2.0 HP (~1.5 kW)Single phase50 mm / 2" quick connect unions

Downloads

Waterco Supastream and Supatuf Brochure

Frequently Asked Questions

How do I choose the right pump?
Work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head — every Supatuf flow on this page is quoted at 5 m head.
Is the Supatuf suitable for salt water?
The Waterco literature we hold does not state a seawater rating for the Supatuf, so talk to us before putting one on salt water and we will quote a seawater-rated pump instead.
Are these pumps self-priming?
Yes — all three Supatuf models are self-priming, with a 2.1 litre strainer basket ahead of the impeller.
What power supply do they need?
All three models are single phase, in 1.0 HP, 1.5 HP and 2.0 HP ratings.
What pipe connections do they take?
50 mm / 2 inch quick connect unions on every model, so the pump can be isolated and removed without cutting pipework.
What warranty comes with a Supatuf?
Three years, subject to Waterco’s warranty terms and conditions.
How do I get a price?
Supatuf pumps are quoted to order — send us your duty point and we will come back with pricing and lead time.
