Waterco Hydrostar MK4 Pumps (up to 1700LPM)

Please contact us for pricing



Request a Quote

Categories: ,

Applications: , ,

Brand:

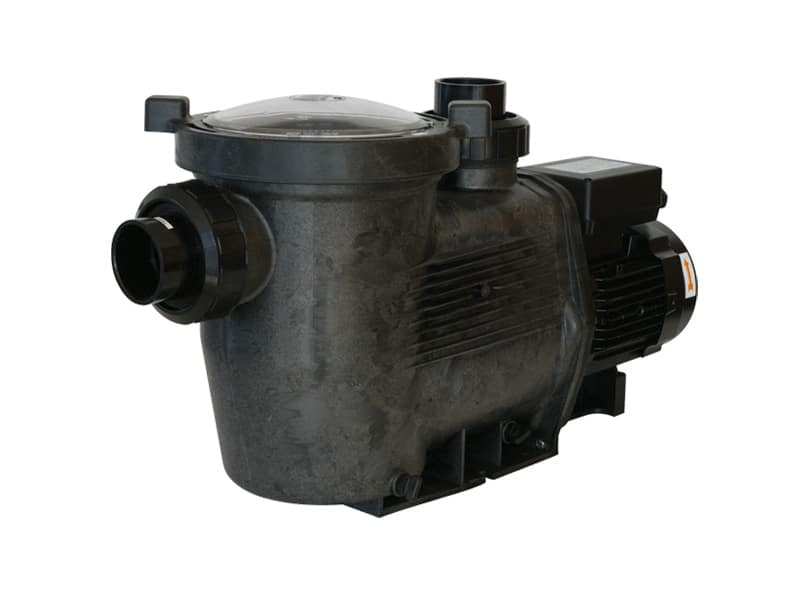

Waterco Hydrostar MK4 Pumps (up to 1700LPM)
Waterco Hydrostar MK4 Pumps (up to 1700LPM) - Image 2
Waterco Hydrostar MK4 Pumps (up to 1700LPM) - Image 3
Waterco Hydrostar MK4 Pumps (up to 1700LPM) - Image 4

Product Information

Key Features

  • Five self-priming commercial models delivering 350 to 1,500 LPM at 10 m head
  • Injection-moulded glass-reinforced thermoplastic body — will not rust, corrode or electrolyse, and resists many water treatment chemicals
  • Seamless one-piece body with no welds, seams or tank linings to fail
  • 6 litre moulded polypropylene strainer basket behind a clear polycarbonate lid for instant inspection
  • Lid lock ring with ergonomic grip handles — open and reseal the strainer without tools
  • Heavy duty IP55 weatherproofed motor with 431 stainless steel shaft and enclosed glass-filled Noryl impeller
  • Optional seawater mechanical seal (SKU 63401625) for salt water duty; 65 mm connections on the 200, 80 mm metric half-union on the 300 to 700
  • To size a pump, work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head

Specifications

ModelSKUFlow at headMotorSupplyConnections
Hydrostar 20024042003350 LPM (21,000 LPH) at 10 m head2 HP (~1.5 kW)Three phase65 mm
Hydrostar 300240430083500 LPM (30,000 LPH) at 10 m head3 HP (~2.2 kW)Three phase80 mm
Hydrostar 4002404400333950 LPM (57,000 LPH) at 10 m head4 HP (~3.0 kW)Three phase80 mm metric half union
Hydrostar 55024045503331,300 LPM (78,000 LPH) at 10 m head5.7 HP (~4.3 kW)Three phase80 mm metric half union
Hydrostar 70024047003331,500 LPM (90,000 LPH) at 10 m head7.2 HP (~5.4 kW)Three phase80 mm metric half union
Seawater mechanical seal63401625Accessory — seal upgrade for salt water duty——Suits Hydrostar range

Downloads

Hydrostar MK4 BrochureHydrostar MKIII BrochureHydrostar MK3 and Hydrostar Plus Brochure

Frequently Asked Questions

How do I choose the right pump?
Work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head — every Hydrostar MK4 flow on this page is quoted at 10 m head.
Can the Hydrostar MK4 be used on salt water?
Yes, with the optional seawater mechanical seal (SKU 63401625); the glass-reinforced thermoplastic body already resists corrosion and electrolysis.
Are these pumps self-priming?
Yes — all five models are self-priming, with a 6 litre strainer basket ahead of the impeller.
What power supply do they need?
All five Hydrostar MK4 models listed here are three phase; ask us to confirm the supply voltage and full load current for your site.
What pipe connections do they take?
The Hydrostar 200 has 65 mm connections and the 300 through 700 use 80 mm metric half unions.
What is the largest flow available?
The Hydrostar 700 delivers 1,500 LPM (90,000 LPH) at 10 m head from a 7.2 HP three phase motor.
How do I get a price?
Hydrostar MK4 pumps are quoted to order — send us your duty point, water type and supply details and we will come back with pricing and lead time.
