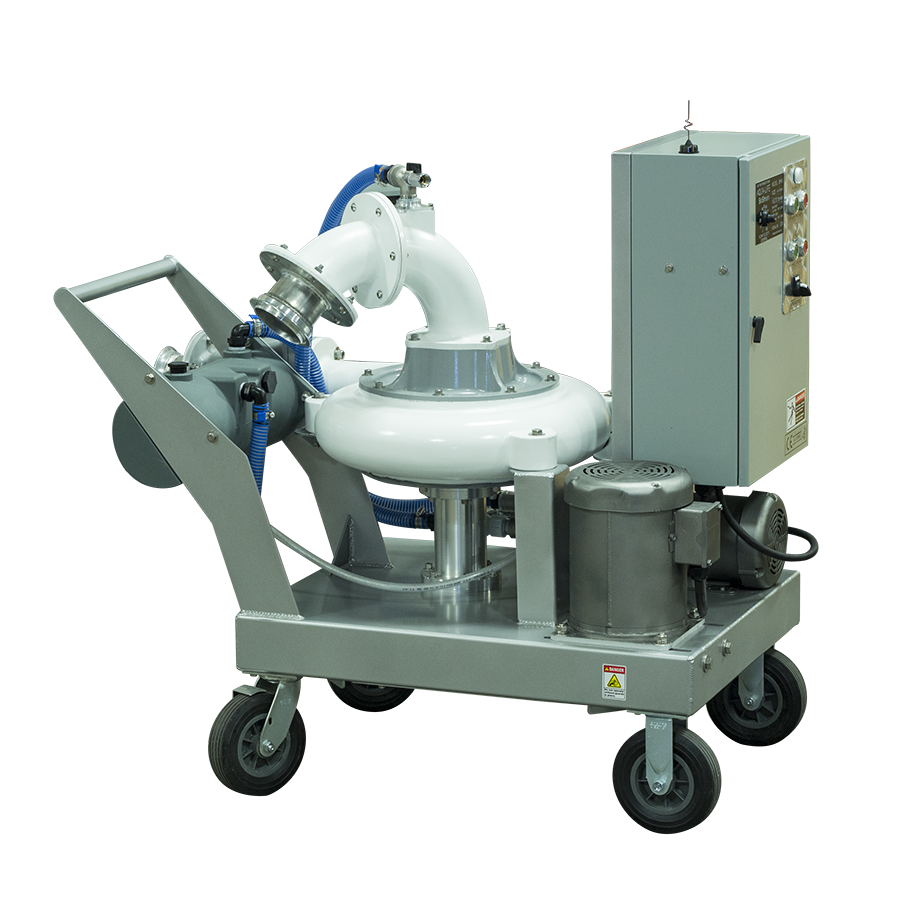

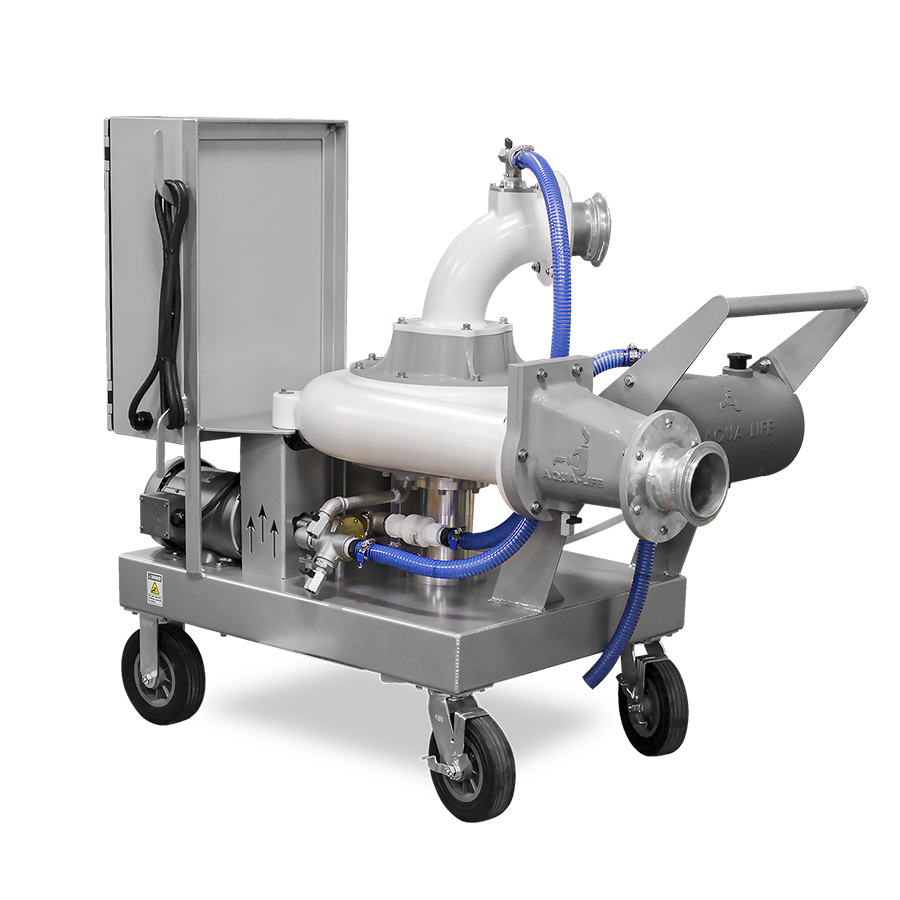

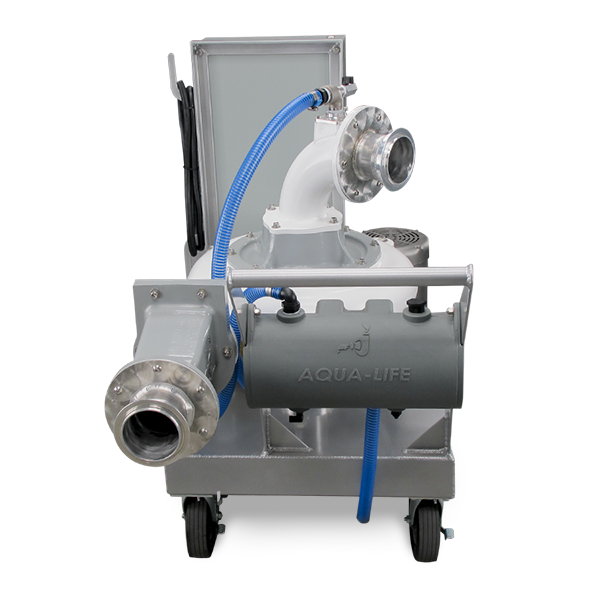

Biostream BP40 (4″) Fish Pump

Q: How many fish will the BP40 move in an hour?

Up to 8 tonnes per hour through its 4″ (100 mm) bore, though the rate you actually achieve depends on species, fish size, pipe run and head.

Q: What size fish will it pass?

The BP40 is rated to a maximum average fish size of 300 g.

Q: How high can it lift?

Up to 9 m of pumping head on the standard 3 hp BP40, or up to 14 m on the 7.5 hp BP40-S.

Q: How do I choose between the BP40 and the next size up?

Compare bore, fish size and tonnage together — the BP40 is 4″ bore, 300 g fish and 8 t/hr, while the BP60 is 6″ bore, 600 g fish and 16 t/hr.

Q: How much water and air does the pump need?

Water and air demand figures are not published for the BP40, so ask Fresh By Design to confirm the service requirements for your layout before you design the services.

Q: Can it be left permanently installed?

Yes — it can be installed as a permanent centralised transfer and harvesting system, or moved between tanks as required.

Q: How do I get a price?

Request a quote with the tonnage you need to move per hour, your maximum average fish size and the vertical head from water level to discharge, and we’ll confirm the right BP model and lead time.

A fish pump for moving fingerlings and juveniles gently between tanks, ponds and vehicles.

Categories: Fish Pumps

Applications: Hatchery, Live Holding & Purging, Live Transport, RAS

Brand: Biostream

Product Information

Key Features

Purpose-built live aquatic transfer pump — moves fish without external or internal damage to the species
4″ (100 mm) suction and discharge bore, matched to fish up to a 300 g average
Self-priming, with variable speed electric drive and optional remote control operation
Marine alloy aluminium construction, light enough (182 kg) to be moved and reinstalled between tanks
Submersible and non-submersible application designs
Two to three times more fish per hour than manual handling, with less damage and stress to the product
BP40-S high-head variant lifts to 14 m on a 7.5 hp drive, where the standard 3 hp BP40 reaches 9 m
Sizing: the BP40 moves up to 8 tonnes of fish per hour through its 4″ (100 mm) bore at up to 9 m head, with a maximum average fish size of 300 g — step up to the BP60 (6″ bore, 16 t/hr, 600 g fish) if your fish are larger or your tonnage is higher, and size on your worst case, as these limits cannot be achieved simultaneously

Specifications

Specification	Detail
Model	BioStream BP40 (BP40-S high-head variant available)
Suction and discharge bore	4″ (100 mm)
Fish pumping capacity	Up to 8 tonnes per hour
Maximum average fish size	300 g
Maximum pumping head	9 m — BP40-S: 14 m
Main pump drive	3 hp (2.2 kW) — BP40-S: 7.5 hp
Drive type	Variable speed electric drive, self-priming
Remote control	Available as an option
Construction	Marine alloy aluminium
Weight	182 kg (401 lb)
Application design	Submersible and non-submersible
Water flow required	Not published by supplier — confirm with Fresh By Design for your layout
Air supply required	Not published by supplier — confirm with Fresh By Design for your layout
Other sizes in the range	BP25 (2.5″), BP60 (6″), BP80 (8″), BP100 (10″), BP120 (12″), BP140 (14″) — other sizes available on request
Please note	Limits vary with application, species and setup, and cannot be achieved simultaneously

Downloads

BioStream Brochure BioStream Fish Pumps BioStream Applications

Frequently Asked Questions

How many fish will the BP40 move in an hour?

What size fish will it pass?

How high can it lift?

How do I choose between the BP40 and the next size up?

How much water and air does the pump need?

Can it be left permanently installed?

How do I get a price?

Spare Parts & Consumables

No products were found matching your selection.

Biostream BP40 (4″) Fish Pump

Product Information

Key Features

Specifications

Downloads

Frequently Asked Questions

Spare Parts & Consumables

Related Products

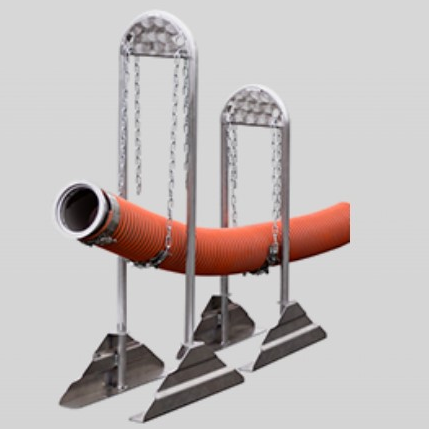

Hose Stands

Fish Transfer Hose

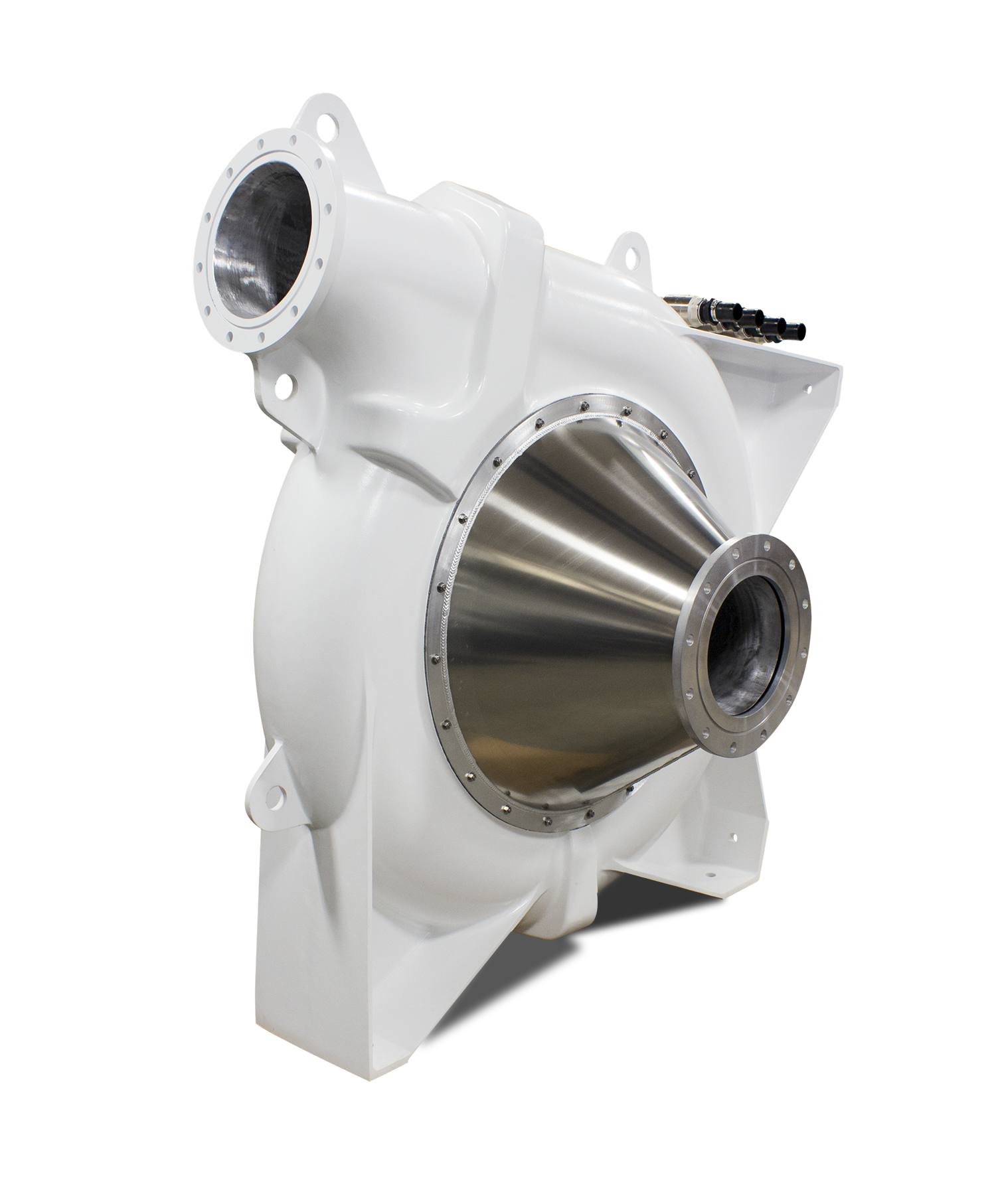

Biostream BP140 (14″) Fish Pump
