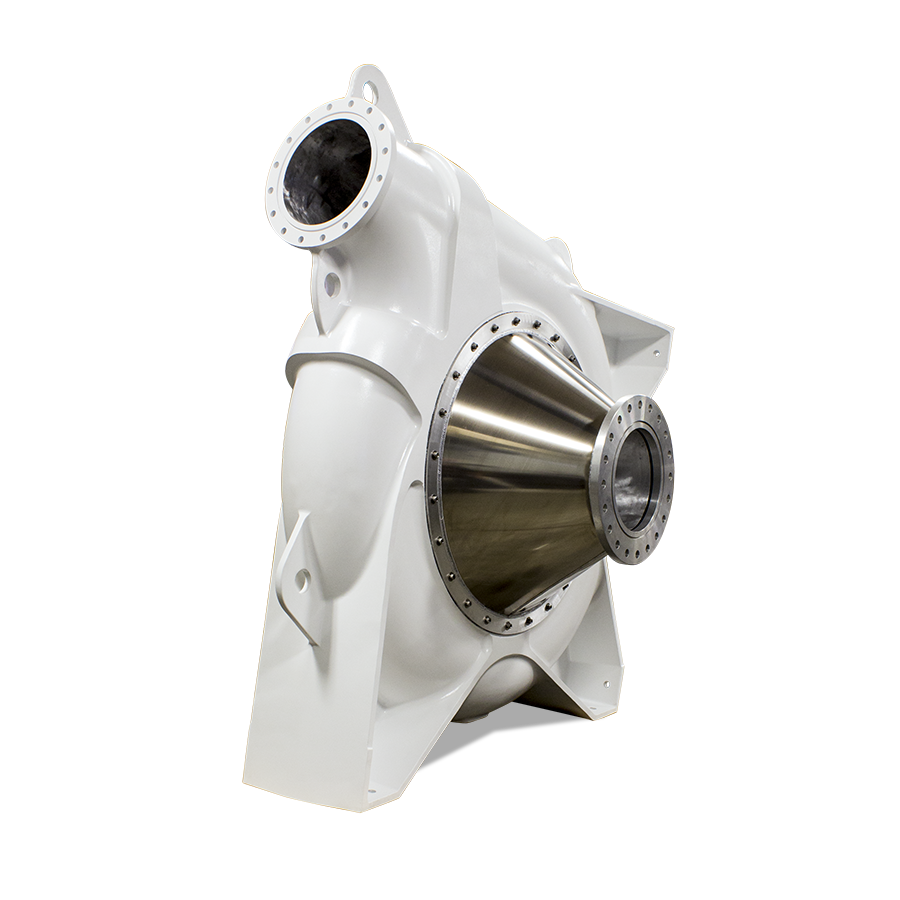

Biostream BP140 (14″) Fish Pump

Q: How many fish will the BP140 move in an hour?

Up to 200 tonnes per hour through its 14″ bore, though the rate you actually achieve depends on species, fish size, pipe run and head.

Q: What size fish will it pass?

The BP140 is rated to a maximum average fish size of 9 kg, the largest in the BioStream range.

Q: Do I need the BP140 or the BP120?

Compare bore, fish size and tonnage together — the BP120 is 12″ bore, 7 kg fish and 150 t/hr, while the BP140 is 14″ bore, 9 kg fish and 200 t/hr.

Q: Can it be used on a boat?

Yes — the BP140 is hydraulically driven, which is what lets it run anywhere from an indoor RAS to a boat deck.

Q: How much water and air does the pump need?

Water and air demand figures are not published for the BP140, so ask Fresh By Design to confirm the service requirements for your layout before you design the services.

Q: How do I get a price?

Request a quote with the tonnage you need to move per hour, your maximum average fish size and the vertical head from water level to discharge, and we’ll confirm the right BP model and lead time.

A high-capacity fish pump for moving large fish between cages, vessels and processing.

Categories: Fish Pumps

Applications: Live Holding & Purging, Live Transport, RAS

Brand: Biostream

Biostream BP140 (14") Fish Pump - Image 2

Biostream BP140 (14") Fish Pump - Image 3

Product Information

Key Features

Purpose-built live aquatic transfer pump — moves fish without external or internal damage to the species
Largest bore in the BioStream range at 14″, matched to fish up to a 9 kg average
Hydraulically driven, so it works equally well in an indoor RAS or on a boat deck
Marine alloy aluminium construction, so it can be moved and reinstalled between sites
Submersible and non-submersible application designs
Broad operating range for bathing, delousing, transferring, grading and harvesting
Two to three times more fish per hour than manual handling, with less damage and stress to the product
Sizing: the BP140 moves up to 200 tonnes of fish per hour through its 14″ bore at up to 8 m head, with a maximum average fish size of 9 kg — drop to the BP120 (12″ bore, 150 t/hr, 7 kg fish) if your fish and tonnage are lower, and size on your worst case, as these limits cannot be achieved simultaneously

Specifications

Specification	Detail
Model	BioStream BP140 — largest model in the range
Suction and discharge bore	14″ — metric bore not published by supplier; confirm with Fresh By Design
Fish pumping capacity	Up to 200 tonnes per hour
Maximum average fish size	9 kg
Maximum pumping head	8 m
Drive type	Hydraulically driven
Main pump drive rating	Not published by supplier — confirm with Fresh By Design
Construction	Marine alloy aluminium
Weight	Not published by supplier — confirm with Fresh By Design
Application design	Submersible and non-submersible; indoor RAS through to boat decks
Typical duties	Bathing, delousing, transferring, grading and harvesting
Water flow required	Not published by supplier — confirm with Fresh By Design for your layout
Air supply required	Not published by supplier — confirm with Fresh By Design for your layout
Other sizes in the range	BP25 (2.5″), BP40 (4″), BP60 (6″), BP80 (8″), BP100 (10″), BP120 (12″) — other sizes available on request
Please note	Limits vary with application, species and setup, and cannot be achieved simultaneously

Downloads

BioStream Brochure BioStream Applications

Frequently Asked Questions

How many fish will the BP140 move in an hour?

What size fish will it pass?

How high can it lift?

Do I need the BP140 or the BP120?

Can it be used on a boat?

How much water and air does the pump need?

How do I get a price?

Spare Parts & Consumables

No products were found matching your selection.

Biostream BP140 (14″) Fish Pump

Product Information

Key Features

Specifications

Downloads

Frequently Asked Questions

Spare Parts & Consumables
