MBBR Bio Media

Q: What is the difference between C1 and C3 media?

C1 is 10 × 7 mm with 1,000 m²/m³ of surface area; C3 is 25 × 12 mm with 600 m²/m³, so C1 fits more biofilm into the same reactor volume while C3 handles coarser, higher-solids water.

Q: How much media do I need?

Size the bed on the surface area your daily ammonia (TAN) load needs — send us your feed rate, species and water temperature and we will work the volume out with you.

Q: Is this the same as Kaldnes K1 and K3?

Yes — C1 is a direct equivalent to Kaldnes K1 and C3 to K3, so it drops straight into an existing moving bed reactor.

Q: Do you stock other media grades?

Fresh By Design deliberately stocks C1 and C3 only, but other grades are available on request.

Q: How is the media kept moving?

Coarse-bubble aeration from a grid in the base of the reactor fluidises the bed, which also oxygenates the water and strips carbon dioxide.

Q: Does it need backwashing or replacing?

No — the media is self-cleaning and non-blocking, and virgin polyethylene media has a very long service life with no consumables.

Q: Can I get bulk or project pricing?

Yes — 1 m³ bulk bags are the most economical way to buy, and we can quote larger project volumes and freight to your site.

Moving bed biofilter media that carries the nitrifying bacteria in recirculating aquaculture and aquarium systems.

Price range: $150.00 through $1,250.00 ex GST

Option

Clear

Categories: Biological Filtration

Applications: Aquaponics, Hatchery, LSS, Public Aquarium, RAS, Water & Wastewater Treatment

Product Information

Key Features

Two grades stocked — C1 at 1,000 m²/m³ (10 × 7 mm) and C3 at 600 m²/m³ (25 × 12 mm); other grades available on request

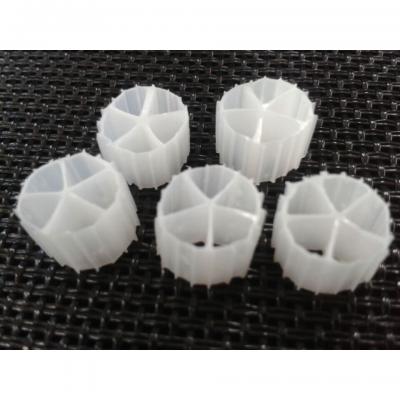

Five-spoke media profile for extra strength and long media life in a moving bed
Neutrally buoyant virgin polyethylene, natural white — held in suspension on air alone
The air that fluidises the bed also oxygenates the water and strips carbon dioxide
Self-cleaning and non-blocking — no backwashing, no channelling and no consumables
Direct equivalents to Kaldnes K1 (C1) and K3 (C3), so they drop into existing reactors
Supplied in 100 L boxes or 1 m³ (1000 L) bulk bags — top up a bed or fill a reactor in one go
Choosing your grade and volume: size the bed on the surface area your daily ammonia (TAN) load needs, then pick the pack size. C1 packs 1,000 m²/m³ into the same volume and suits most RAS and hatchery duties, while the larger 25 × 12 mm C3 media suits coarser, higher-solids water. The stated figure from Fresh By Design for C1 is up to 700 g of TAN removed per day per m³ of media — the reference temperature and TAN concentration for that figure are not published, so send us your feed rate and water temperature and we will size the bed with you.

Specifications

Specification	C1	C3
Media size	10 × 7 mm	25 × 12 mm
Specific surface area	1,000 m²/m³	600 m²/m³
Area basis (total or protected)	Not stated by supplier	Not stated by supplier
Indicative TAN removal	Up to 700 g TAN per day per m³ of media	Not published by supplier
Reference condition for TAN figure	Temperature and TAN concentration not published	—
Material	Virgin polyethylene, natural white	Virgin polyethylene, natural white
Buoyancy	Neutrally buoyant	Neutrally buoyant
Equivalent to	Kaldnes K1	Kaldnes K3
Pack sizes stocked	100 L box; 1 m³ bulk bag; 1 m³ as 10 × 100 L boxes	1 m³ (1000 L) bag
Other grades	Fresh By Design stocks C1 and C3 only — other grades available on request	Fresh By Design stocks C1 and C3 only — other grades available on request

Frequently Asked Questions

What is the difference between C1 and C3 media?

How much media do I need?

Is this the same as Kaldnes K1 and K3?

Do you stock other media grades?

How is the media kept moving?

Does it need backwashing or replacing?

Can I get bulk or project pricing?
