Faivre Drum Filter – Spider Screens

Genuine Faivre spare screens built on the patented Spiderplate mesh support, which spreads solids loading across a wider area of screen and adds a second 300 µm nylon support layer. Stocked in nylon mesh from 30 to 100 µm to suit the Rotoclean 80, 120, 160 and 200 Series, with the AISI 316 stainless tensioner available separately.

Request a Quote

Categories: ,

Applications: ,

Brand:

Faivre Drum Filter - Spider Screens
Faivre Drum Filter - Spider Screens - Image 2

Product Information

Key Features

  • Genuine Faivre spare screens built on the patented Spiderplate mesh support
  • The Spiderplate carries the mesh on a spider frame, spreading solids loading across a wider area of screen
  • Reinforced build with a second 300 µm nylon mesh support layer and updated seals
  • Fits the Faivre Rotoclean 80, 120, 160 and 200 Series drum filters
  • Nylon mesh stocked in 30, 40, 60, 80 and 100 µm
  • AISI 316 stainless Spiderplate tensioner available separately as a service part
  • Held in local stock by Fresh By Design — see the Faivre Drum Filters page for the parent range
  • Sizing: confirm your Rotoclean Series first — every spider screen listed here suits the 80, 120, 160 and 200 Series — then match the micron rating already fitted to the machine. Going finer captures more solids but triggers backwash more often.

Specifications

Mesh ratingMesh materialFits Rotoclean SeriesPart code
30 µmNylon80, 120, 160 and 200 SeriesFS80L030NY
40 µmNylon80, 120, 160 and 200 SeriesFS80L040NY
60 µmNylon80, 120, 160 and 200 SeriesFS80L060NY
80 µmNylon80, 120, 160 and 200 SeriesFS80L080NY
100 µmNylon80, 120, 160 and 200 SeriesFS80L0100NY
Tensioner only (no mesh)AISI 316 stainless steelSpiderplate spider screens onlyFSTEND80
Other ratingsNylon or stainless80 to 200 SeriesOther sizes available on request

Downloads

Faivre Rotoclean 80 Series Spec SheetFaivre Rotoclean 120 Series Spec SheetFaivre Rotoclean 160 Series Spec SheetFaivre Rotoclean 200 Series Spec Sheet

Frequently Asked Questions

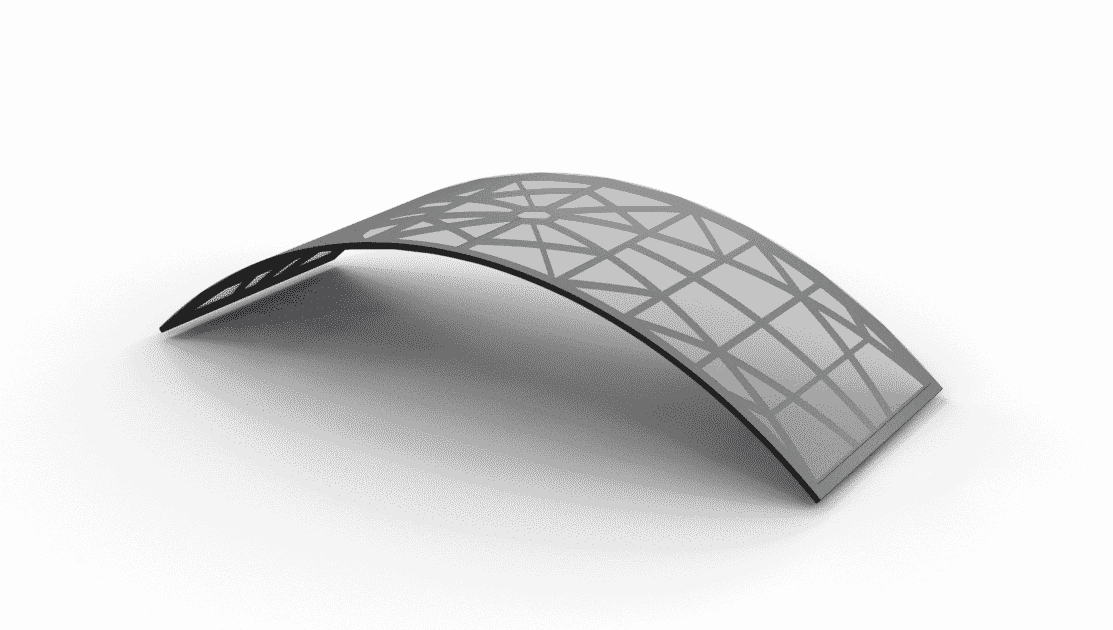

What is a Spiderplate?
It is Faivre’s patented mesh support, which carries the screen on a spider frame so solids loading is spread across a wider area of mesh.
Which drum filters do spider screens fit?
The Faivre Rotoclean 80, 120, 160 and 200 Series — one spider screen part covers all four of those Series.
Which micron ratings are stocked?
Nylon mesh in 30, 40, 60, 80 and 100 µm, with other ratings available on request.
Which micron rating should I order?
Match the rating already fitted to your machine unless you are deliberately changing solids capture — finer mesh removes more solids but backwashes more often.
Do I need a new tensioner as well?
Only if yours is worn or you are converting to Spiderplate — the AISI 316 stainless tensioner is listed separately as part code FSTEND80.
Can I fit spider screens to a filter currently running standard plates?
Check with us first — the Spiderplate upgrade uses its own mesh support and tensioner, so the change-over needs confirming against your machine.
How do I get a price?
Request a quote with your Rotoclean Series, the micron rating you need and the quantity.
