Faivre’s drum filters are the workhorses of land-based aquaculture and aquaponics. Built in France and used in hatcheries, RAS, and broodstock systems worldwide, every Faivre drum filter shares the same self-cleaning drum design — what changes between series is throughput.
Choose your Series below to match your flow rate. We’ll quote pricing, tank or frame configuration (SS 304L, SS 2205, AISI 316L, or HDPE), mesh size (15 µm to 500 µm), and motor voltage to suit your site.
| Series | Drum Ø | Indicative max flow (60 µm) | Typical use |
|---|---|---|---|

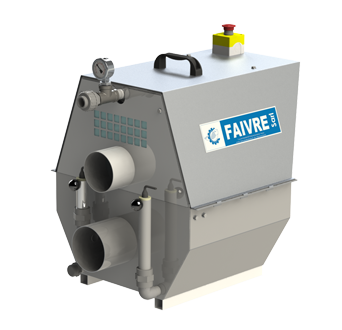

| 40 | 400 mm | up to ~43,000 LPH | Hatchery, small RAS, aquaponics |

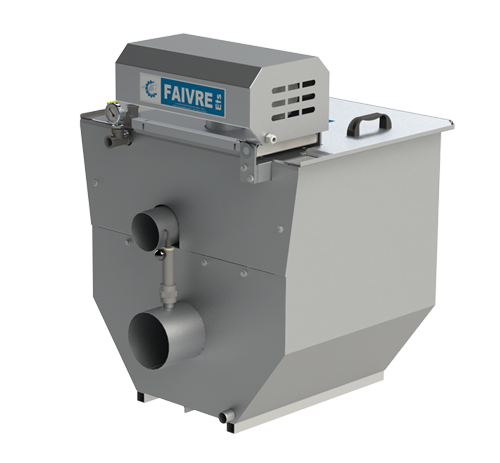

| 60 | 600 mm | up to ~160,000 LPH | Hatchery, medium RAS |

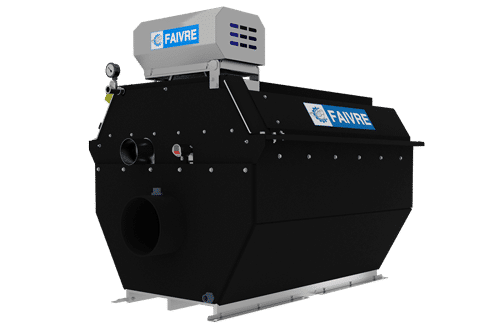

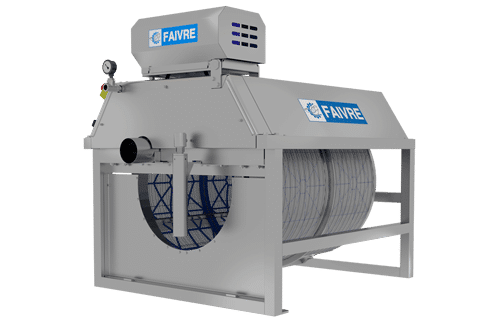

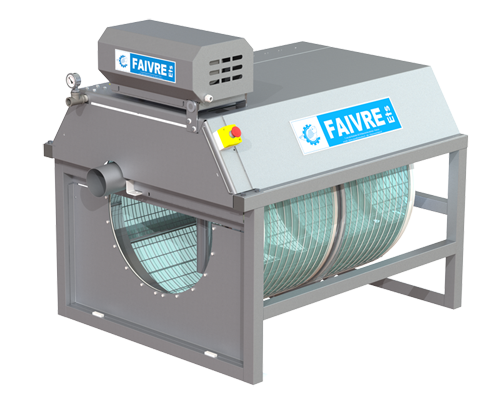

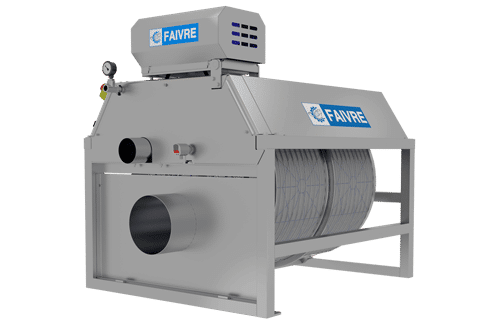

| 80 | 800 mm | up to ~370,000 LPH | Commercial RAS, broodstock |

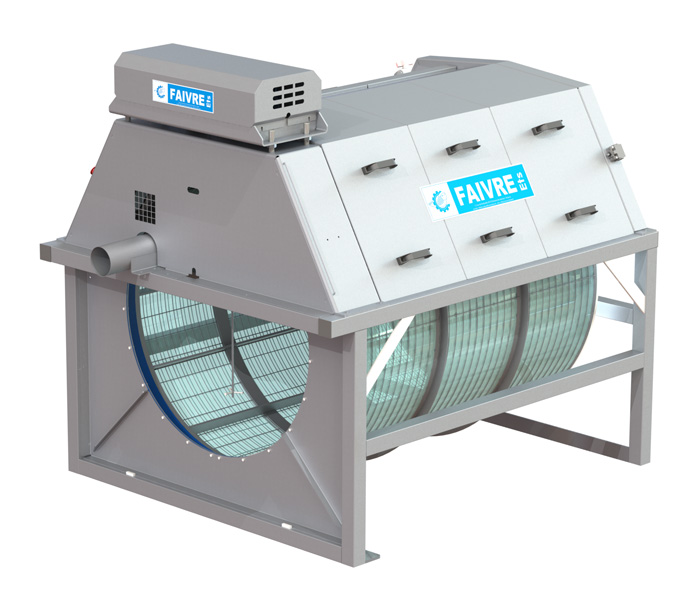

| 120 | 1,200 mm | up to ~850,000 LPH | Large RAS, salmon smolt |

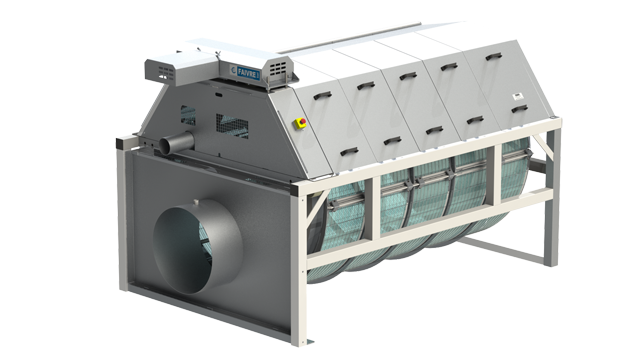

| 160 | 1,600 mm | up to ~2,300,000 LPH | Large land-based farms |

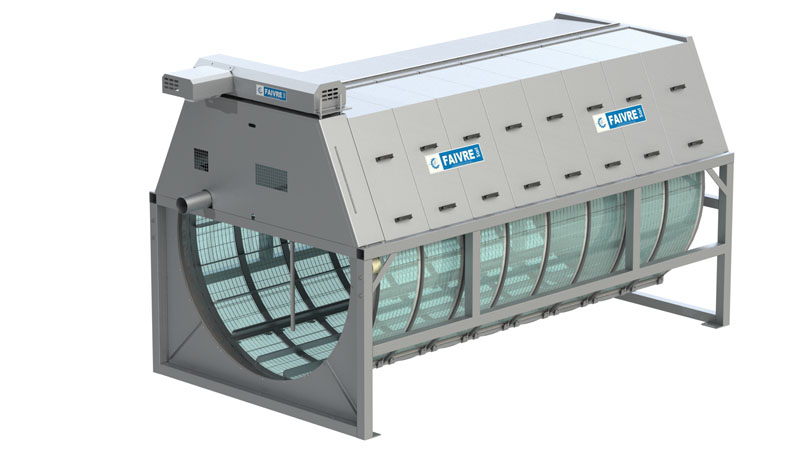

| 200 | 2,000 mm | up to ~3,000,000 LPH | Major commercial sites |
Our team is here to help you find the right equipment for your project.
