MR4-220PP C Model open channel UV + Channel mounting system

Categories: Second Hand, Specials

Product Information

Open channel UV disinfection unit, MR4-220PP C Model, for installation directly in a wet channel
Specified for 40 m³/hr at a 30 mJ/cm² UV dose, assuming a UV transmittance of 90% or better
UV sensor included for live dose monitoring
Advanced control cabinet included
Ultra wiper wiping system included — keeps the sleeves clean in service without manual handling

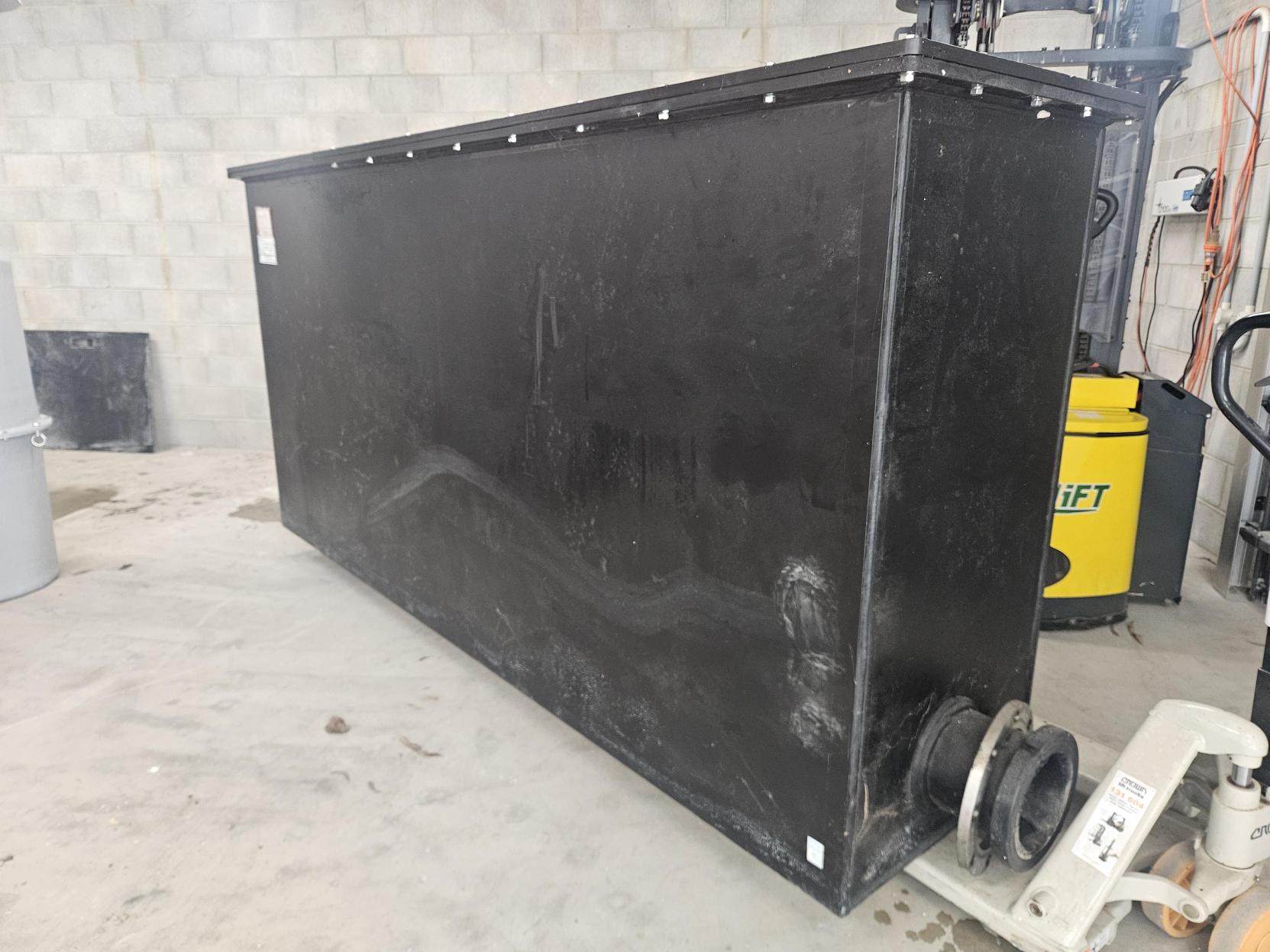

HDPE channel mounting system available with the unit
Completely new and unused, held as clearance stock
Sizing check: this unit suits a channel duty of about 40 m³/hr at 90%+ UVT — delivered dose falls as transmittance falls, so check it against your own water quality and design flow

Specification	Detail
Model	MR4-220PP C Model open channel UV
Type	Open channel (in-channel) UV disinfection unit
Design flow	40 m³/hr (40,000 LPH)
UV dose at design flow	30 mJ/cm²
Design UV transmittance	90% or better
Lamp count and installed power	Confirmed on enquiry
Included	UV sensor, advanced control cabinet, Ultra wiper wiping system
Channel mounting	HDPE channel mounting system available with the unit
Condition	Completely new and unused
Warranty	Confirmed on enquiry
