Oasis Super Chill (Heat and Chill)

New Zealand built reverse-cycle chillers, 18 to 48 kW chilling and 35 to 75 kW heating on three phase, able to hold water at 2 °C in 40 °C ambients. Capacities are not published against a reference condition — ask us to confirm at your site conditions.

Request a Quote

Categories:

Applications: , , ,

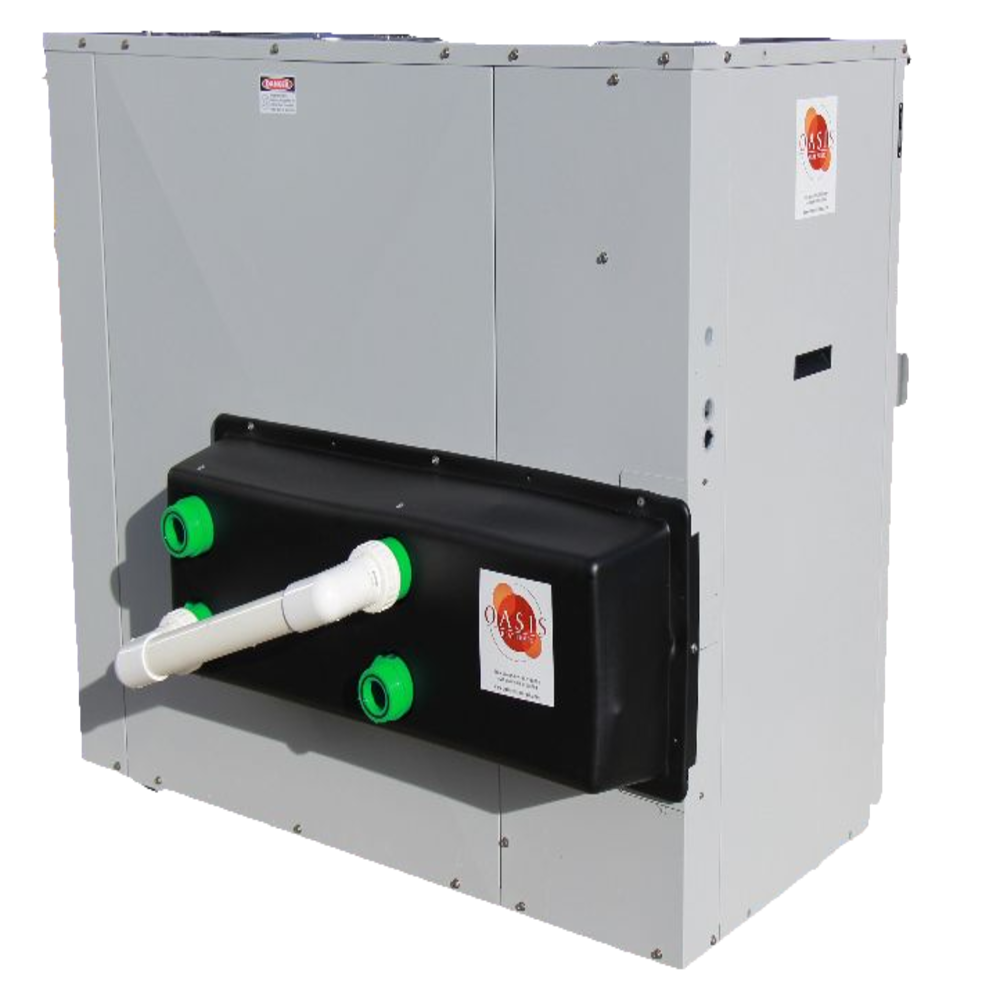

Oasis Super Chill (Heat and Chill)
Oasis Super Chill (Heat and Chill) - Image 2

Product Information

Key Features

  • New Zealand built by Oasis, who have been manufacturing and supplying heat pumps for over 30 years
  • Reverse-cycle: each unit both heats and chills, and the two capacities differ — the SCI-18 is 35 kW heating but 18 kW chilling — so size on whichever duty drives your system
  • Chills down to 2 °C even at 40 °C ambient, with the variable-speed condenser fan tested to 52 °C ambient
  • Inverter variable-speed compressor with accurate EEV refrigerant control; soft-starting EC motors and inverter compressors avoid high inrush current
  • Head-pressure control compensates for outdoor ambient temperatures below 20 °C on the cooling cycle
  • Epoxy-coated fin coils and a galvanised steel cabinet, polyester powder coated to IP44 — built for salt-laden coastal air
  • UC8 controller, BMS compatible via digital and analogue signals or Modbus, with multi-unit control possible
  • Note that the published heat and chill capacities are not quoted against a stated air and water temperature, so treat them as nominal. To size a unit, work from your water volume, the temperature lift (or pull-down) you need at your site’s design ambient, and your system turnover — send those to Fresh By Design and we’ll run a heat-loss calculation and confirm capacity at your actual conditions before you commit.

Specifications

ModelHeat capacityChill capacityRated atWater flow (LPM)ConnectionPower supply
Oasis SCI-1835 kW18 kWCapacity not published against a reference condition20050 mmThree phase
Oasis SCI-2250 kW22 kWCapacity not published against a reference condition20040 mmThree phase
Oasis SCI-3260 kW32 kWCapacity not published against a reference condition30050 mmThree phase
Oasis SCI-4875 kW48 kWCapacity not published against a reference condition30050 mmThree phase

Downloads

Oasis Super Chill Aquaculture BrochureOasis Super Chill Specifications & Drawings

Frequently Asked Questions

Do these heat as well as chill?
Yes, every model does both — and the two capacities differ, so the SCI-18 is rated 35 kW heating and 18 kW chilling.
What air and water temperature are the capacities quoted at?
The supplier does not publish a reference condition for these figures, so treat them as nominal and ask us to confirm capacity at your site conditions.
How cold can they take the water?
Down to 2 °C, and the range holds that performance at ambient temperatures up to 40 °C.
Are they suitable for coastal or salt-laden sites?
Yes — the fin coils are epoxy coated and the cabinet is galvanised steel, polyester powder coated to IP44.
Can they be run from a building management system?
Yes — the UC8 controller is BMS compatible via digital and analogue signals or Modbus, and multi-unit control is possible.
What power supply do they need?
All four models in the range are three phase.
How do I get a price?
Send us your water volume, target temperature, site ambient and power supply — we’ll size a model and come back with pricing and lead time.
