Rossi EasyDip Vaccinators

Rossi EasyDip immersion vaccinators dip small fish in vaccine solution for 30 to 60 seconds, with minimal handling and low stress. The EasyDip 800 WS handles 1 to 12 g fish at 5 to 7 kg per minute in a 30 litre bath, while the fully automatic EasyDip 1200 takes 1 to 15 g fish at up to 40 kg per minute in a 240 litre bath. Both can be upgraded with a weighing system for automated batching.

Request a Quote

Categories: ,

Applications: ,

Brand:

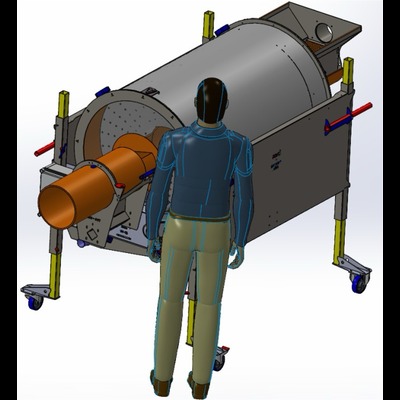

Rossi EasyDip Vaccinators

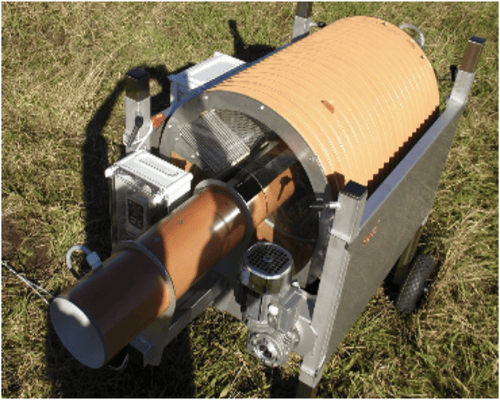

Rossi EasyDip Vaccinators - Image 2
Rossi EasyDip Vaccinators - Image 3

Product Information

Key Features

  • Immersion vaccination — fish are submerged in vaccine solution for 30 to 60 seconds, with minimal handling and low stress
  • EasyDip 800 WS runs an adjustable drum speed with an oxygen diffuser holding oxygen through the dip
  • EasyDip 1200 is fully automatic, with a touch panel for programming and automatic dewatering
  • Both machines can be upgraded with a weighing system for fully automated batching
  • Adjustable working height — 40 to 90 cm on the 800 WS, 69 to 120 cm on the 1200 — to suit the line it sits in
  • Stainless steel construction on the 1200, durable and quick to clean down
  • Low power draw at 250 watts on both models
  • Sizing: match the machine to your fish and batch rate — the 800 WS takes 1 to 12 g fish at 5 to 7 kg per minute in a 30 litre bath, and the 1200 takes 1 to 15 g fish at up to 40 kg per minute in a 240 litre bath

Specifications

ParameterEasyDip 800 WSEasyDip 1200
Fish size range1–12 g1–15 g
Throughput5–7 kg/min (approx. 300–420 kg/h)Up to 40 kg/min (approx. 2,400 kg/h)
Vaccine bath capacityMax 30 litresMax 240 litres
Adjustable working height40–90 cm69–120 cm
Power consumption250 watts250 watts
ControlAdjustable drum speedFully automatic, touch panel
Weighing systemAvailable as an upgradeAvailable as an upgrade
DewateringNot fittedAutomatic dewatering
OxygenationOxygen diffuser fittedNot stated
ConstructionNot statedStainless steel
Vaccination methodImmersion, 30–60 secondsImmersion
Overall dimensionsNot statedNot stated
Introduced20032022

Downloads

EasyDip 800 WS Manual (UK, 2021)EasyDip 1200 Manual (UK, 2024)

Frequently Asked Questions

Which model do I need for my fish size and throughput?
The 800 WS takes fish of 1 to 12 g at 5 to 7 kg per minute; the 1200 takes 1 to 15 g at up to 40 kg per minute, so match the model to your smolt size and daily batch.
What is that throughput in fish per hour?
Rossi rate these machines by mass rather than fish count — 5 to 7 kg per minute is roughly 300 to 420 kg per hour on the 800 WS and up to about 2,400 kg per hour on the 1200, so the fish count depends on your average weight.
How long are the fish immersed?
30 to 60 seconds in the vaccine solution, which is the effective dip time for small fish.
How much vaccine bath does each machine hold?
A maximum of 30 litres in the 800 WS and a maximum of 240 litres in the 1200.
Can either machine be fully automated?
Yes — both can be upgraded with a weighing system, and the 1200 already has a touch panel and automatic dewatering.
How is oxygen maintained during the dip?
The 800 WS is fitted with an oxygen diffuser to hold oxygen levels through the vaccination cycle.
What power supply does it need?
Both models draw 250 watts.
