MariSource Vertical Incubators

Q: How many eggs does one incubator hold?

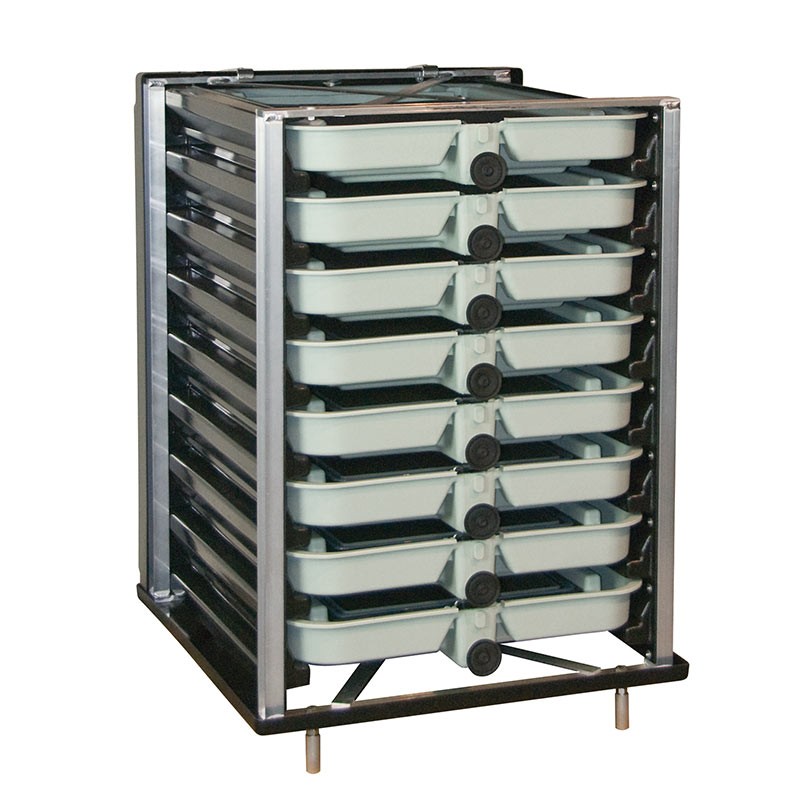

An 8-tray cabinet holds 96,000 salmon eggs, which works out at 12,000 eggs per tray.

Q: How do I work out how many trays I need?

Divide your egg take by 12,000 eggs per tray, then round up to the next whole tray and the next whole cabinet.

Q: How much water does a stack need?

A flow figure is not published for these cabinets because demand varies with species, egg loading and water temperature, so ask Fresh By Design to confirm the flow for your hatchery before you size the supply.

Q: Can the cabinets be stacked?

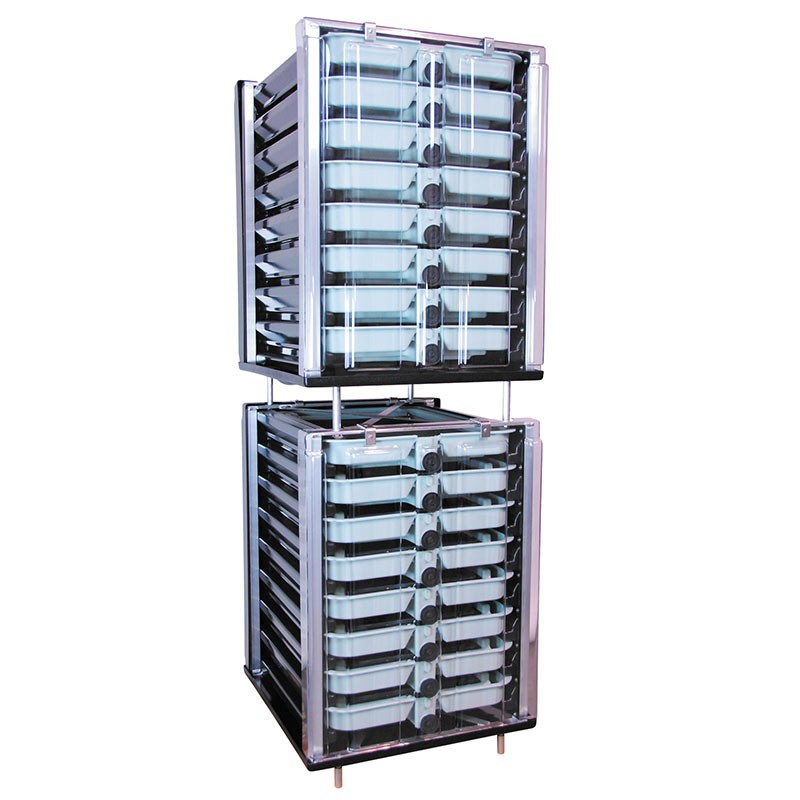

Yes, two 8-tray cabinets stack to 16 trays on the same floor area, and a second water source can be introduced to the lower cabinet so oxygen stays up.

Q: Can eggs be worked without pulling the tray out of the cabinet?

Yes, each water tray slides forward on level tracks so eggs can be worked and returned in place, and individual egg trays lift out for monitoring without disturbing the rest of the stack.

Q: What screen mesh is fitted?

Units ship with the screen your hatchery specifies for the species, sized so eggshells pass through while alevin and fry are retained.

Q: Are spare parts available?

Yes, spare parts for MariSource vertical incubators are available through Fresh By Design.

Vertical incubators for hatching salmonid and other fish eggs in upwelling trays.

Categories: Hatchery

Applications: Hatchery, RAS

Brand: MariSource

MariSource Vertical Incubators - Image 2

MariSource Vertical Incubators - Image 3

Product Information

Key Features

Vertical upwelling flow — water enters the rear of the top water tray, upwells through the egg tray and cascades into the tray below
One-piece welded aluminium cabinet with moulded plastic internals — will not rust or chemically attack eggs, and every component floats
Each water tray slides forward on level tracks, so eggs can be worked and returned without lifting the tray out of the cabinet
Individual egg trays lift out for picking and monitoring without disturbing the rest of the stack
Supplied as a 4-tray unit, an 8-tray cabinet, or two 8-tray cabinets stacked to 16 trays on the same floor area
Delivered fully assembled with the screen mesh specified for your species — eggshells pass through while alevin and fry are retained
Spare parts available through Fresh By Design
Sizing: an 8-tray cabinet holds 96,000 salmon eggs — 12,000 eggs per tray — so divide your egg take by 12,000 and round up to the next tray, then the next cabinet

Specifications

Specification	Detail
Configurations	4-tray unit, 8-tray cabinet, or two 8-tray cabinets stacked to 16 trays
Egg capacity per tray	12,000 salmon eggs (96,000 divided by 8 trays)
Egg capacity, 8-tray cabinet	96,000 salmon eggs
Egg capacity, 4-tray unit	48,000 salmon eggs (at 12,000 per tray)
Egg capacity, 16-tray stack	192,000 salmon eggs (at 12,000 per tray)
Tray screen	20 x 20 screen; mesh specified per species at time of order
Water path	Vertical upwelling — top tray downwards, each water tray feeding the next
Water supply, 16-tray stack	A second water source may be introduced to the lower cabinet to keep oxygen up
Flow rate required per stack	Not published — confirm with Fresh By Design for your species, egg loading and water temperature
Cabinet	One-piece welded aluminium frame
Internal components	Moulded plastic; will not rust or chemically attack eggs; all components float
Species	Salmon and trout
Delivery	Fully assembled with species-specific screening
