Midwest Digital Flow Meter

Battery-powered digital paddle-wheel flow meter for water, with LCD flow rate and an 8-digit resettable totaliser. Stocked for 15 mm to 150 mm pipe in pipe-mount or saddle-mount styles, covering 2 to 12,000 LPM across the range.

$615.00 ex GST

Option

Clear

Categories: Flowmeters, Water Pumps

Applications: Aquaponics, LSS, Pond, RAS, Water & Wastewater Treatment

Brand: Midwest

Product Information

Key Features

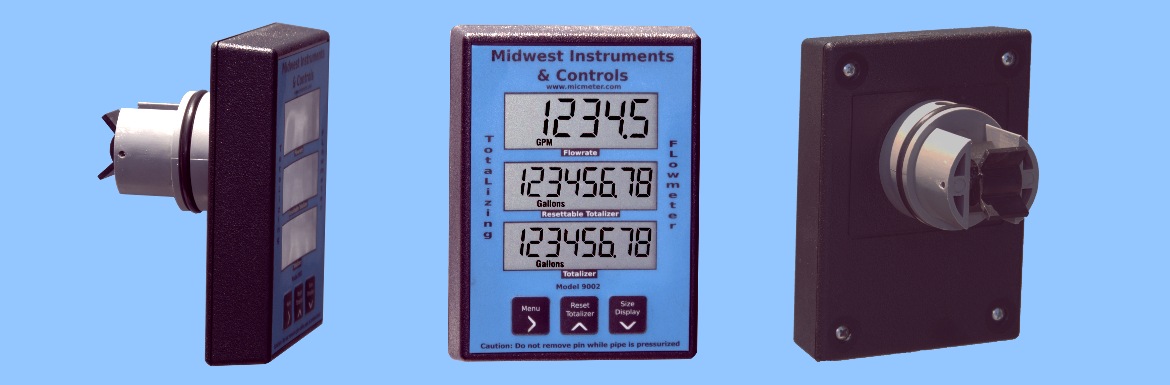

Battery-powered digital paddle-wheel flow meter for water, with an LCD flow-rate readout and an 8-digit resettable totaliser
Stocked for 15 mm to 150 mm pipe; the supplier range runs from 1/2″ to 8″, so other sizes are available on request
Flow range 2–12,000 LPM across the full size range — the supplier does not publish a separate range per pipe size, so ask us to confirm the range for your size
Reads litres/minute and litres by default, and can also be calibrated in gallons/minute or cubic feet/minute
Seven-year battery life, so it suits isolated monitoring points with no power available
Programmed by selecting your pipe size and pipe schedule from a list on the meter — no calibration rig needed
PVC paddle wheel with a stainless steel paddle pin, ABS housing and scratch-resistant polycarbonate faceplate; water resistant and can be mounted outdoors if shielded from direct sunlight

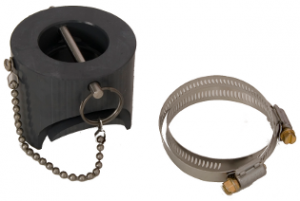

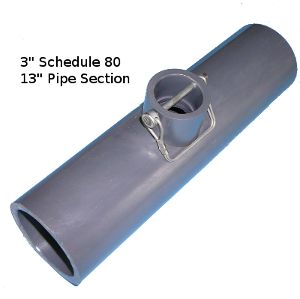

Sizing: choose your pipe size first, then the fitting style — pipe mount covers 15 to 50 mm and saddle mount covers 40 to 150 mm, with 40 mm and 50 mm available either way. Confirm your normal operating flow with us before ordering, as flow ranges are not published per size.

Specifications

Specification	Detail
Fluid	Water
Pipe sizes stocked — pipe mount	15 mm, 25 mm, 40 mm, 50 mm
Pipe sizes stocked — saddle mount	40 mm, 50 mm, 80 mm, 100 mm, 150 mm
Supplier pipe size range	1/2″ to 8″ — other sizes available on request
Flow range	2–12,000 LPM across the full size range; per-size ranges are not published by the supplier
Display	Liquid crystal display showing flow rate, plus an 8-digit resettable totaliser
Units	Litres/minute and litres by default; also calibrates to gallons/minute and cubic feet/minute
Power	Internal battery, seven-year life — no mains supply required
Programming	Select pipe size and pipe schedule from a list on the meter
Wetted materials	Injection-moulded PVC paddle wheel and associated parts, stainless steel paddle pin
Enclosure	ABS housing with scratch-resistant polycarbonate faceplate; water resistant
Installation	Suits lines with moderate particulate; removable for cleaning and repair; outdoor mounting only if shielded from direct sunlight

Frequently Asked Questions

What pipe sizes are available?

Fresh By Design stocks 15 mm to 150 mm. The supplier range runs from 1/2″ to 8″, so other sizes are available on request.

What flow range does it cover?

2 to 12,000 LPM across the full size range. Per-size ranges are not published, so contact us to confirm the range for your pipe size.

Does it need mains power?

No — it runs on an internal battery rated for seven years, which makes it suitable for isolated monitoring points.

What units does it display?

Litres per minute and litres as standard, and it can also be set to gallons per minute or cubic feet per minute.

Can it be installed outdoors?

Yes — it is water resistant and can be mounted outdoors provided it is shielded from direct sunlight.

How is it set up?

You select your pipe size and pipe schedule from a list on the meter itself. No external calibration is required.

What is the difference between pipe mount and saddle mount?

Pipe mount options cover 15 to 50 mm and saddle mount options cover 40 to 150 mm; 40 mm and 50 mm are available in either style.
