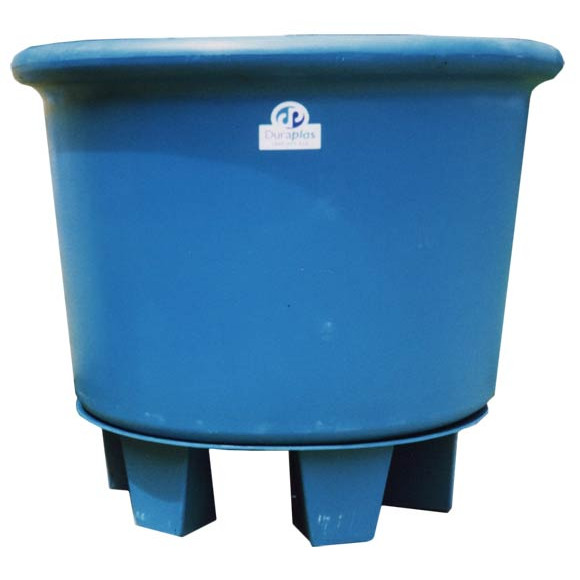

Duraplas Aquaculture Tank

Q: Does the tank clean itself?

The tapered floor moves solids to the centre drain, so the tank largely self cleans — slope is 10° on the 200 L, 5° on the 1,000 to 5,000 L and 7.5° on the 10,000 L.

Q: What drain size do I get?

Your choice of a 50 mm, 80 mm or 100 mm centre drain is included, along with an installation fixtures kit.

Q: Can I add side or surface drains?

Yes — side and surface drains can be incorporated alongside the standard bottom centre drain to suit the application.

Q: Is the base included?

The poly support base is included on the 1,000, 2,500 and 5,000 L. It is optional on the 200 L and the 10,000 L.

Q: What colours are available?

The 200 L to 5,000 L come in a choice of colours; the 10,000 L is only available in royal blue.

Q: Is the litre figure total volume or working volume?

It is the nominal tank capacity — Duraplas does not publish a separate working volume, so allow your own freeboard when sizing.

Q: How is delivery handled?

These are oversize items, so freight is quoted per job — call 02 4868 2500 or email sales@freshbydesign.com.au for a delivery quote before you order.

Heavy-duty poly tanks for aquaculture holding, grow-out and water storage.

Price range: $795.00 through $3,945.00 ex GST

Tank Model

Clear

Categories: Aquaculture Tanks

Applications: Aquaponics, Hatchery, Live Holding & Purging, RAS

Brand: Duraplas

Product Information

Key Features

Rotomoulded UV stabilised food grade polyethylene, 100% BPA free, designed and manufactured in Australia by Duraplas with 35+ years behind the same ownership
Every model has a tapered floor so solids move to the centre drain and the tank self cleans — 10° on the 200 L, 5° on the 1,000, 2,500 and 5,000 L, and 7.5° on the 10,000 L
Choice of 50 mm, 80 mm or 100 mm centre drain included, plus an installation fixtures kit; side and surface drains can be added to suit the application
Guaranteed heavy duty shot weight — thicker walls and more rigidity than lighter rotomoulded tanks
5 year commercial-industrial warranty
Poly support base included on the 1,000, 2,500 and 5,000 L; optional on the 200 L and 10,000 L. The 10,000 L is only available in royal blue, the smaller tanks come in a choice of colours
Proven across Australian hatcheries, nurseries, grow out, purging and holding systems, and exported to South East Asian and Pacific Island markets
Five sizes — 200 L to 10,000 L, 820 mm to 3,700 mm diameter and 575 mm to 1,350 mm high on the base. Capacities are the nominal tank size; Duraplas does not publish a separate working volume, so allow your own freeboard

Specifications

Model	Nominal capacity (L) — supplier figure; working volume not published	Diameter (mm)	Height (mm) — tank / on base	Floor slope	Centre drain
AP 200	200	820	575 / base optional	10°	50, 80 or 100 mm
AP 1000	1,000	1,430	900 / 1,200	5°	50, 80 or 100 mm
AP 2500	2,500	2,200	900 / 1,220	5°	50, 80 or 100 mm
AP 5000	5,000	2,700	900 / 1,220	5°	50, 80 or 100 mm
AP 10000	10,000	3,700	1,000 / 1,350	7.5°	50, 80 or 100 mm
