Team Paddlewheel

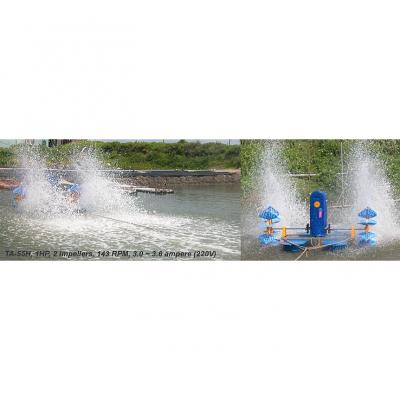

Team Aqua paddlewheel aerators lift dissolved oxygen in ponds while keeping power costs down, using a patented adjustable parabolic impeller that throws a wider, higher splash and finer droplets. Four models run from 1 HP with two impellers up to 2 HP with eight, in single or three phase. Tell us your pond dimensions and stocking plan and we will size the model and unit count for you.

Price range: $1,200.00 through $2,700.00 ex GST

Categories: ,

Applications: , , ,

Brand:

Team Paddlewheel
Team Paddlewheel - Image 2
Team Paddlewheel - Image 3
Team Paddlewheel - Image 4

Product Information

Key Features

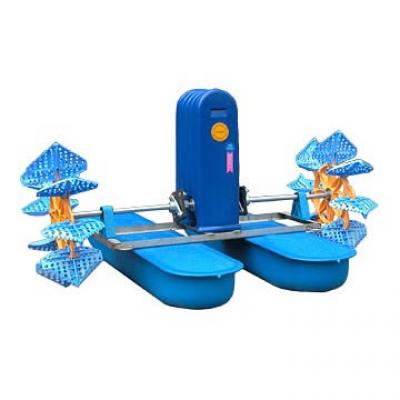

  • Four models — TA-55H, TA-55M, TA-66H and TA-747H — from 1 HP (0.75 kW) with two impellers up to 2 HP (1.5 kW) with eight impellers
  • Single-phase and three-phase versions of the TA-55H, TA-55M and TA-66H; the TA-747H is three-phase only
  • Patented adjustable parabolic impeller throws a wider, higher splash and finer droplets, lifting oxygen transfer for the same power
  • Over 50% more water displacement at the same power draw than a conventional paddle wheel, or the same oxygen output for less power
  • Synthetic aluminium magnesium motor housing sheds heat around 30% faster than cast iron, extending motor life
  • HDPE floats and motor cover, and a worm-and-wheel gearbox with three teeth engaged instead of the usual two
  • Supplied unwired with no electrical cables, and backed by a 12-month warranty
  • Size on pond surface area and oxygen demand: match impeller count and motor kW to the surface area, depth and stocking density of each pond — send Fresh By Design your pond dimensions and stocking plan and we will work out the model and the number of units

Specifications

ModelSKUMotorImpellersSupplyShipping size (L×W×H)Shipping weight
TA-55HTA-55H1 HP (0.75 kW)23 phase168 × 110 × 83 cm60 kg
TA-55HTA-55H-11 HP (0.75 kW)21 phase168 × 110 × 83 cm60 kg
TA-55MTA-55M1 HP (0.75 kW)43 phase168 × 110 × 83 cm60 kg
TA-55MTA-55M-11 HP (0.75 kW)41 phase168 × 110 × 83 cm60 kg
TA-66HTA-66H2 HP (1.5 kW)43 phase168 × 110 × 83 cm60 kg
TA-66HTA-66H-12 HP (1.5 kW)41 phase168 × 110 × 83 cm60 kg

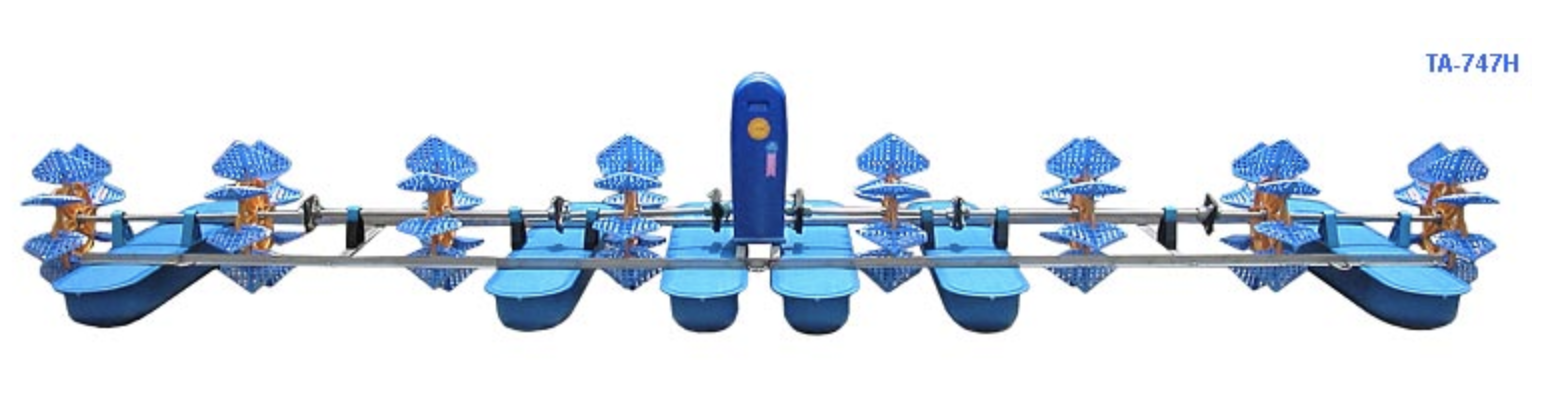

TA-747HTA-747H2 HP (1.5 kW)83 phase220 × 122 × 91 cm180 kg
All models—Supplied unwired, no cablesAdjustable parabolic—HDPE floats and cover12-month warranty

Downloads

Team Aqua Paddlewheel Brochure

Frequently Asked Questions

How do I work out which model and how many units I need?
Size on pond surface area and oxygen demand – match impeller count and motor kW to each pond’s surface area, depth and stocking density, and send Fresh By Design your pond dimensions and stocking plan for a unit count.
What is the difference between the TA-55H and the TA-55M?
Both run a 1 HP (0.75 kW) motor, but the TA-55H carries two impellers and the TA-55M carries four, so the TA-55M works a larger patch of water for the same motor size.
Which models are available in single phase?
The TA-55H, TA-55M and TA-66H are available in both single phase and three phase; the TA-747H is supplied three phase only.
Do the paddlewheels arrive wired and ready to run?
No – all paddlewheels are supplied unwired and no electrical cables are included, so allow for wiring and a starter in your installation.
Why does the adjustable parabolic impeller matter?
It can be set to change the splash pattern, throwing finer droplets over a wider, higher arc, which increases the air-water surface area and the oxygen transferred per kilowatt.
What warranty applies?
Team Aqua paddlewheels are covered by a 12-month warranty.
Are spare parts held in Australia?
Yes – impellers, motors, gearboxes, plastic bearings and movable joints for the TA-55 and TA-66 range are stocked by Fresh By Design.
